| MEDIDAS DEL SEGURO |
|
UTILIZAR EN EJES |

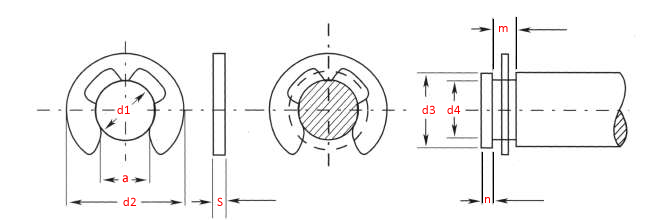

MEDIDAS
DE LA RANURA |
| Denomi-nación |
d1 |
d2 |
a |
S |
Tole-rancia |
PESO Kgs
1000/ pzas |
|
d3 |
d4 |
m |
Tole-rancia |
n mín. |
CARGA
AXIAL PARA d3 en |
|
de |
hasta |
min. |
máx. |
| 1,5 RS |
1,5 |
4,0 |
1,28 |
0,4 |
|
0,021 |
|
2,0 |
2,5 |
1,5 |
0,44 |
|
0,8 |
7 |
12 |
| 1,9RS |
1,9 |
4,5 |
1,61 |
0,5 |
|
0,040 |
|
2,5 |
3 |
1,9 |
0,54 |
|
|
10 |
20 |
| 2,3RS |
2,3 |
6,0 |
1,94 |
0,6 |
|
0,070 |
|
3,0 |
4 |
2,3 |
0,64 |
|
1,0 |
14 |
32 |
| 3,2RS |
3,2 |
7,0 |
2,70 |
0,6 |
+0,02 |
0,090 |
|
4,0 |
5 |
3,2 |
0,64 |
|
|
20 |
45 |
| 4RS |
4,0 |
9,0 |
3,34 |
0,7 |
|
0,158 |
|
5,0 |
7 |
4 |
0,74 |
+0,02 |
|
30 |
65 |
| 5RS |
5,0 |
11,0 |
4,11 |
0,7 |
|
0,234 |
|
6,0 |
8 |
5 |
0,74 |
|
1,2 |
40 |
75 |
| 6RS |
6,0 |
12,0 |
5,26 |
0,7 |
|
0,255 |
|
7,0 |
9 |
6 |
0,74 |
|
|
50 |
100 |
| 7RS |
7,0 |
14,0 |
5,84 |
0,9 |
|
0,474 |
|
8,0 |
11 |
7 |
0,94 |
|
1,5 |
60 |
120 |
| 8RS |
8,0 |
16,0 |
6,52 |
1,0 |
|
0,660 |
|
9,0 |
12 |
8 |
1,05 |
|
1,8 |
70 |
170 |
| 9RS |
9,0 |
18,5 |
7,63 |
1,1 |
|
1,000 |
|
10,0 |
14 |
9 |
1,15 |
|
2,0 |
80 |
200 |
| 10RS |
10,0 |
20,0 |
8,32 |
1,2 |
+0,03 |
1,120 |
|
11,0 |
15 |
10 |
1,25 |
+0,06 |
2,0 |
90 |
220 |
| 12RS |
12,0 |
23,0 |
10,45 |
1,3 |
|
1,770 |
|
13,0 |
18 |
12 |
1,35 |
|
2,5 |
100 |
240 |
| 15RS |
15,0 |
29,0 |
12,61 |
1,5 |
|
3,370 |
|
16,0 |
24 |
15 |
1,55 |
|
3,0 |
130 |
300 |
| 19RS |
19,0 |
37,0 |
15,92 |
1,75 |
|
|
|
20,0 |
31 |
19 |
1,85 |
|
3,5 |
|
|
| 24RS |
24,0 |
44,0 |
21,88 |
2,0 |
|
|
|
25,0 |
38 |
24 |
2,05 |
|
4,0 |
|
|
|
