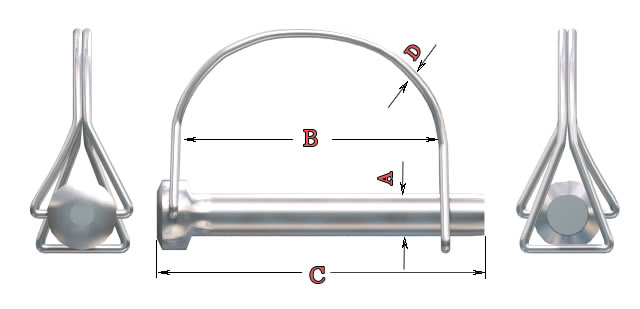

Pasador con bloqueo de alambre (Wire Lock Pins) |
||
|
|||||||||||||||||
| A | B | C | D | |||||
| Tamaño | Pul | m/m | Pul | m/m | Pul | m/m | Pul | m/m |
| 3/16 x 1 3/4 | .186 |
4,72 | 1.75 | 44.45 | 2.3 | 58,4 | .094 | 2.28 |
| 1/4 x 1 3/4 | .250 |
6.35 | 1.75 | 44.45 | 2.5 | 63.5 | .094 | 2.28 |
| 1/4 x 2 1/4 | .250 |
6.35 | 2.25 | 57.15 | 3.125 | 79.37 | .094 | 2.28 |
| 1/4 x 2 5/16 | .250 |
6.35 | 2.312 | 58.72 | 2.875 | 73.0 | .094 | 2.28 |
5/16 x 2 3/8 |
.312 |
7.92 | 2.38 | 60.45 | 3.0 | 76.2 | .094 | 2.28 |
| 3/8 x 2 1/4 | .375 |
9.52 | 2.25 | 57.15 | 3.125 | 79.37 | .094 | 2.28 |
