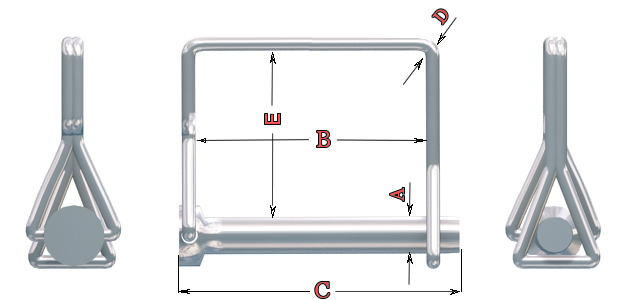

Pasador con bloqueo de alambre Cuadrado (Wire Lock Pins) |
||
|
|||||||||||||||||
| A | B | C | D | E | ||||||
| Tamaño | Pul | m/m | Pul | m/m | Pul | m/m | Pul | m/m | Pul | m/m |
| 1/4 x 2 1/4 | .250 |
6.35 | 2.25 | 57.15 | 3.20 | 81.2 | .094 | 2.28 | ||
| 1/4 x 2 1/2 | .250 |
6.35 | 2.50 | 63.50 | 3.25 | 82.5 | .094 | 2.28 | ||
5/16 x 2 3/8 |
.312 |
7.92 | 2.38 | 60.45 | 3.0 | 76.2 | .094 | 2.28 | ||
| 3/8 x 2 1/4 | .375 |
9.52 | 2.25 | 57.15 | 3.13 | 79.4 | .094 | 2.28 | 40.0 | |
