Golillas Aranlock |
||
|
|
|
||
|
|
|||
|
Carbono máx. 0,75
Manganeso: 0,60 - 0,90 |
|||
|
|
|||
|
|
|||
|

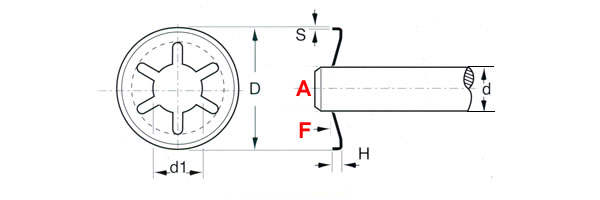

MEDIDA DE ARANLOCK |
||||||||
|
Diámetros
Ejes "d" en |
Diám.
exterior |
Agujero |
|
|
Ranura |
|||
|
mm |
pulg. |
D |
d1 |
H |
S |
N° |
||
|
3.00 |
|
10.0 |
|
|
|
|
||
|
3.00 |
- |
11.3 |
2.60/2.70 |
1.2/1.6 |
0.2 |
6 |
||
|
|
|
|
|
|
|
|
||
|
3.17 |
1/8 |
11.3 |
2.70/2.80 |
1.2/1.6 |
0.2 |
6 |
||
|
4.00 |
5/32 |
11.3 |
3.50/3.65 |
1.2/1.6 |
0.2 |
6 |
||
|
4.76 |
3/16 |
11.3 |
4.30/4.45 |
1.2/1.6 |
0.2 |
6 |
||
|
5.00 |
. |
11.3 |
4.50/4.65 |
1.2/1.6 |
0.2 |
6 |
||
|
|
|
|
|
|
|
|
||
|
4.00 |
5/32 |
15.0 |
3.50/3.65 |
1.4/1.8 |
0.3 |
6 |
||
|
|
|
|
|
|
|
|
||
|
5.00 |
- |
15.0 |
4.50/4.65 |
1.4/1.8 |
0.3 |
6 |
||
|
6.00 |
- |
15.0 |
5.50/5.65 |
1.4/1.8 |
0.3 |
6 |
||
|
6.35 |
1/4 |
15.0 |
5.85/6.00 |
1.4/1.8 |
0.3 |
6 |
||
|
7.00 |
- |
15.0 |
6.50/6.65 |
1.4/1.8 |
0.3 |
6 |
||
|
8.00 |
5/16 |
15.0 |
7.50/7.65 |
1.4/1.8 |
0.3 |
6 |
||
|
|
|
|
|
|
|
|
||
|
8.00 |
5/16 |
18.0 |
7.50/7.65 |
1.8/2.2 |
0.3 |
6 |
||
|
9.00 |
- |
18.0 |
8.50/8.65 |
1.8/2.2 |
0.3 |
6 |
||
|
9.52 |
3/8 |
18.0 |
9.05/9.15 |
1.8/2.2 |
0.3 |
6 |
||
|
10.00 |
- |
18.0 |
9.50/9.65 |
1.8/2.2 |
0.3 |
6 |
||
|
12.00 |
- |
18.0 |
11.50/11.65 |
1.8/2.2 |
0.3 |
6 |
||
|
|
|
|
|
|
|
|
||
|
8.00 |
5/16 |
21.0 |
7.50/7.65 |
1.9/2.3 |
0.3 |
6 |
||
|
10.00 |
- |
21.0 |
9,50/9.65 |
1.9/2.3 |
0.3 |
6 |
||
|
11.10 |
7/16 |
21.0 |
10.55/10.70 |
1.9/2.3 |
0.3 |
6 |
||
|
12.00 |
- |
21.0 |
11.50/11.65 |
1.9/2.3 |
0.3 |
6 |
||
|
12.70 |
1/2 |
21.0 |
12.20/12.35 |
1.9/2.3 |
0.3 |
6 |
||
